SOLARMAGIC POWER OPTIMIZERS

We just got a lead on this new product by National Semiconductor. These power optimizers allow you to get the maximum performance out of your PV solar strings.

Today’s photovoltaic arrays are defined as strings of series-connected PV panels, which are then paralleled together and converted to AC power through an inverter. The key challenge of these arrays is how a small amount of real-world mismatch with just a few of the PV panels can cut the power output of the entire array in half. This mismatch can come in the form of shading (e.g. trees, chimneys, overhead power lines, bird droppings, handrails, etc.), panel-to-panel mismatch, different panel orientations and tilts, or different string lengths.

As a result of these mismatches, system integrators are often forced to compromise their installation by various methods, such as reducing the size of the array to avoid shade, accepting a lower energy output per square meter, or adding extra panels in a different part of the array, all of which cost money, efficiency, and/or aesthetics for the system owner.

To maximize the energy output of each solar PV panel in the array, National Semiconductor has developed SolarMagic technology, which enables each solar panel to produce the maximum energy regardless of whether other panels in the array are under-performing due to mismatch. SolarMagic technology monitors and maximizes the energy harvest of each individual PV panel through advanced algorithms combined with leading-edge mixed-signal technology, thereby recouping up to 57% of the lost energy due to mismatches.

The SolarMagic power optimizer is designed to be installed quickly and easily within the traditional architecture of a solar array. Each power optimizer comes with a universal mounting bracket for easy attachment to a racking system. The output wires of each solar panel are simply series-connected to a power optimizer (positive wire to positive wire, negative to negative), with the power optimizer output wires correspondingly connecting into the next solar panel’s power optimizer.

The blocking diode is designed to block reverse current flow by allowing current to flow in one direction and disconnect the circuit if current attempts to flow in the opposite direction. Due to the interaction, strings with SolarMagic power optimizers installed – also referred to as assisted strings – will have varying voltage levels during energy production hours.

A single blocking diode must be installed in each assisted string to protect the SolarMagic power optimizers from damage.

All SolarMagic power optimizers come with a limited 20-year warranty, thereby ensuring the reliability of the panel-mounted electronics matches the panels themselves.

See Spec Sheet

You can order these items on-line by going to my solar site at my
Solar-Catalog.com/pv_opt.html or go to Solar-Catalog.com and view all the Solar, Wind, and Hydro energy products I have available.

My 2010 on-line catalog is now available for your viewing. This year I have added more products as well as product and design information. Ordering on-line makes it easy for you to order what you need 24/7.

Until next time, I hope that this has been helpful. Starting in 2010 I will attempt to feature an energy product once a week and do an informational article every month. At least that is my intent. I will also attempt to be more regular on my Woodcarving Blog as well. With that said, lets hope that I am not promising too much. If I am, I will let you know and reschedule my plans.

Terry R. Wolff

OFF-GRID COMPONENTS

Setting up an off-the-grid solar system (this means having electric without having access to a power utility or if you do have access, they would be used as an emergency backup much like having a backup generator) usually seems more complicated than it needs to be. I know this by the number of people that call me that are either completely in the dark or darn near to it. So I am writing this to try to put some clarity to this subject.

When you set up an off grid energy system you become your own energy utility company. This means that your system will be as efficient as the components you use. It also means that you are also the maintenance department as well as the systems monitoring department. I only mention this to make you aware of some of your responsibilities and not to scare you. I have been living off the grid for nearly thirty years, most of that full time (meaning that there were a few times when I had access to shore power) and have never experienced any major issues. Back in the 80's I had to have a relay replaced in my inverter and more recently I needed to replace a temperature sensor in one of my inverters (I have redundant inverters so I have one as a backup). The main issue with an off-grid system is the batteries. As a rule of thumb, the more costly the batteries, the less trouble you should have (if you can afford it, industrial batteries are the way to go).

Now that you know what your responsibilities will be, I would like to mention that I personally prefer living independent of the grid. Here in northern New Mexico those living on the grid are subject to occasion brown outs, black outs, power surges, and low voltage. None of this has ever effected me the whole time which I have lived here. While those here who do live with the grid have experienced these inconveniences which have cost them loss of expensive electronics I might add.

So what is needed to have an independent energy system? You need to have an energy generating system, this could be Solar, Wind, Hydro, or a Fuel Powered Generator. The first three cost nothing to run once they are setup. Lets look at each of these four options.

• Solar Energy – Is readily available when the sun is shining. The Solar Modules change the Suns energy into DC Electric which is stored in Batteries until the Electric is needed.

• Wind Energy – Relies on Wind Turbines to provide you the energy. Just like the Solar Modules, most of these residential and small commercial unites make DC Electric which is stored in Batteries also. Since Wind Turbines are mechanical, they could be subject to mechanical issues

• Micro Hydro Electric – These are great if you have access to enough steady running water. Again they produce DC Electric which is stored in Batteries as well. Likewise, Hydro Turbines are mechanical devises and may be subject to mechanical issues.

• Generators, Fuel Based – These are available in either AC, DC, or both. Since generators have combustible engines, making the electric as needed they will be running whenever you need electric unless you are using it to charge a battery bank. Generators run on gasoline, diesel, natural gas, or propane. Using a generator is the most expensive way to generate electric. While generators have been the standard in remote areas throughout the world, they are rapidly being replaced by Solar and Wind which require less operating costs, maintenance and down time. Most of the Generators I sell today are purchased for System Back-up, most of our Sine-Wave Inverters are capable of starting a generator when the Voltage levels of the Batteries become too low.

For sake of discussion I will be talking about setting up a Solar and/or Wind Systems. Hydro Systems use similar components but also needs a few additional such as a Load Controller and a Load Diverter. Both Solar and Wind can be setup independent or used in conjunction with each other as well.

Below is a list of the components which make up an Off-Grid Electric System. I am listing these items in the order in which they appear in the system. These systems can have an input of 12VDC, 24VDC, or 48VDC depending on your individual requirements. I started with a 12VDC System because back then, that is all that was available. Today the 24VDC and 48VDC Systems are more common place as they require thinner wires and the Solar Modules and Wind Turbines can be further away from the Solar Building. I now have a 48VDC System because of our Solar Well Pump but I would recommend a 24VDC System your system with the exception of mobile and cabins where all the Loads are going to be DC. 48VDC Systems require four 6VDC Batteries for every Battery on a 12VDC System. If you are doing a Battery Based Grid-Tie System that you will have to use a 48VDC input.

1. Electric Generation – This would be a Solar Module (also referred to as a Solar Panel or PV Panel) or Solar Array (two or more Solar Modules) and/or a Wind Turbine or Turbines. These will produce DC Electric which needs to be stored in a bank of Batteries for current or future use. Other than pumps all AC and DC loads require Batteries and they provide a more stable voltage level.

2. Mounting System – Both Solar Modules and Wind Turbines need to have a way of mounting them. For Solar Modules there are a number of Mounting Systems available from Pole Mounts, Ground Racks, Trackers, Roof Mounts, and RV Mounts. Wind Turbines are mounted on Wind Towers, Roof Mounts, and Marine Mounts.

3. Combiner Box – These are Breaker or Fuse Boxes which mount to the Mounting System. The purpose of these is to isolate each Solar Module and to allow you to only have to run two wires back to your Solar Room/Shed.

4. Solar Building – This is where you keep all your Components, Disconnects, and the Battery Bank to protect them from the elements. Whatever you choose to use, this is entirely up to you and I am only mentioning this to bring it to your attention. Just make sure that you allow enough room to move around and that there is a minimum of three feet in front of the Inverter and Disconnects.

5. DC Disconnects – These are Breakers which are used to isolate various components from each other. Some times there are more than one Breaker Box but today there are DC Disconnects that are designed for Solar Systems. These Disconnects include space to do all your DC Wiring and Breakers to isolate the...
   A. PV Panels from the Charge Controller
   B. Charge Controller from the Batteries
   C. Ground Fault Breaker
   D. Inverter(s) from the Batteries
   E. DC Loads from the Inverter(s)
   F. Lightning Arrestors
   a. At the Combiner Box or base of the Wind Tower
   b. In the DC Disconnect
   c. In the AC Disconnect
   G. Grounding

6. Charge Controller(s) – Every Battery Based Solar System requires a Battery Charge Controller. The Controller protects the Batteries from becoming over charged and distributes the charging Amps in three Phases - Bulk, Float, and Equalize. Controllers range in Amp output from as small as a couple Amps to 80 Amps. If mixing different size Solar Panels or if the Amperage is more than 80 Amps than additional Charge Controllers would be required. There are two types of Controllers, PMW and MPPT. They will be further discussed in another posting. Some Wind Turbines come with built-in Controllers.

7. Inverter(s) – These convert DC Electric to AC Electric. Not all Systems have AC loads and if they don't, then an Inverter would not be required. When it comes to Inverters, there is a wide range of them, ranging from small cigarette lighter models and up from there. Here we will be referring to the most common which are used in homes. These are Modified Sine Wave or Sine Wave Inverters. Some Inverters include built in chargers and can be set to accept Utility Power or start a Generator if the Voltage in the Battery Bank fall below a predetermined Voltage.

8. Solar Storage Batteries – These are Deep Cycle Batteries needed to store the electric which is produced by the PV Panels or Wind Turbines. Due to weight and cost issues most people will choose using a commercial grade Battery which come packaged in six Volt units. All Batteries consist of 2VDC Cells which are packaged together to form larger Voltage Batteries ie. 6VDC, 12VDC. The 6VDC L-16 Batteries are the most common as the only weigh about 130 pounds each. Industrial Batteries can weigh up to 1,000 pounds per Cell and multiply that by 6 and you have one heavy Battery, so these are not a convenient as the commercial Batteries. The Batteries are wired together to create your required Voltage so if you are doing 24VDC with an L-16 you will need to wire four of them together to create one Battery. To increase the Amp Hours (AH) you need to do this in increments of four Batteries per Bank. For example, I have a 48VDC System presently with sixteen L-16 Batteries. This is 2 Battery Banks of 350 AH each which gives me a total of 700 AH.

9. AC Disconnect – This includes all the Breakers that are required for disconnecting the Inverter, Loads, and By-Pass if you are going to be connected to the Grid or a Generator. The AC Disconnect is where you will do all your AC Wiring.

This completes my list of the main components which you will need to get yourself started to being self sufficient from Utility Electric. What I find interesting that during the past several years there has been a big push in the industry toward Grid-Tie and yet I find that there are a good number of people that just want to be off the grid even though they may be in a position to sell electric back to their Utility. So we have been selling Off-Grid Systems along with Grid-Tie Systems to the same customer. Whatever your needs are feel free to contact me and see whats available.

The above image is similar to my OutBack System except that I have two Charge Controllers on my System. From left to right I will explain what we have here. The box on the left is the AC Disconnect Box, just to its left is the Communications HUB, to its right are the two OutBack VFX Inverters, to its right is the DC Disconnect Box, and finally to the far right from top to bottom is the MATE Systems Control Unit, and the MX60 MPPT Charge Controller. The reason for the redundant Inverters is so that there is a back-up should one of the Inverters have to be taken out of service, to provide additional charging Amps during back-up charging from the Generator, and finally it shares the Load when the demand on the master Inverter reaches three-quarters capacity. These two Inverters are set up so one is the Master and works all the time and the second is a Slave Unit which is called into action only when required. OutBack Systems are the flagship of our product line but we offer components from all the major manufactures.

I hope that this answers your questions and has been helpful to you.

Terry R. Wolff

TOUCHING BASE

Wow here we are going into November and I am sorry that I have not really had much time to post a new blog. I am working on a few topics but for now I have work to do in the wood shop and my time for blogging is very limited. I will see if I can get something to you perhaps later this week.

I want to mention that for those of you who are reading this as a note on FaceBook, that you can come join this blog and thereby receive the information in the formate that it was intended. I have noticed that FaceBook does not keep the original format when it up loads from this blog. Here is the blog's web address... solarwindinfo.blogspot.com

Terry R. Wolff

SOLAR ELECTRIC SYSTEMS - GRID-TIE

Grid-Tie System - This means that your solar electric system and your local utility are both tied into your home and the electricity can run in both direction (in other words when you are producing more electric then you are using, the excess is transferred to your utility company. When you need more electric then you can produce the electric runs from your utility). A grid-tie system can be either independent of batteries (Grid-Tie) or it can support a battery bank (Grid-Interactive).

Basically how grid-tie works, is that when your system is generating electric, the extra electric is sent to the utility thus running your electric meter backwards (you are either selling or getting an electric credit from your utility). With a Grid-Interactive System, when your system is not making electric you are either drawing electric off your batteries or if your batteries are low, from the utility thus running you meter forward (you are buying or withdrawing your credit from your utility). In some cases you may not presently see any money from your utility company, however each year that has been changing and it depends on your utility company. Depending on your system and usage, you will be able to either lower your utility bill to none existent or at the very least have lower electric bills and in some cases may receive a check at the end of the month. A good example of Grid-Tie at its best is where you have long sunny days in the summer (selling to the grid) and short snowy days in the winter (collecting your summer credits). So my advise is, if you have the utility near by and expect that someday it will be going past your property or if you are already on the grid and are looking to make an investment in the future to seriously consider a system that can be tied to the grid. Also, in an area like northern New Mexico where power surges and brownouts seem like a daily routine than a Grid-Interactive System makes not only a good back-up system but may very well save a lot of unforeseen expense on replacing sensitive electronic equipment such as computers.

All Grid-Tie systems stop selling to your utility should there be an interruption of utility service. This is required by law to protect any linemen that may have to work on the outage problem. A Grid-Interactive System on the other hand will provide you with uninteruped back-up power as long as your batteries are full enough.

Presently there are three types of Grid-Tie Systems.

1. GRID-TIE WITH STRING INVERTERS: This is where your system sells when you are producing and you purchase when you are not producing. The reason why the inverters are referred to as String Inverters is because each inverter must be matched to a string or strings of solar Photovoltaic (PV) Modules or Solar Panels.

   When you are setting up your system you need to match the inverter you choose to the size and make of module you plan on purchasing. In other words, you can't purchase some panels because you think you are getting a deal and hope that they may work with a grid-tie inverter.

   You need to decide what you can afford to invest and make your purchase at one time. You can always add additional inverters and panels to increase your system at a later date.


2. GRID-TIE WITH A DEDICATED INVERTERS: This is a relativity new technology in the solar market. This system will cost you less to get started. Each solar PV module (solar panel) is connected with its own dedicated inverter. As you may see, with this system you can purchase as little as one inverter and one module and you could be up and running.

   To expand your system you just add modules and inverters as you desire. Another advantage is that if some of your modules are clouded over, the remaining will still be selling energy to your utility.


3. GRID-INTERACTIVE INVERTERS: These systems also have their advantages and disadvantages. Their main advantage is that they can provide you with electric when there is a utility outage because they have a battery back-up. They function much as any Grid-Tie System does except you will have a battery backup when your utility goes down. Here in the Taos area, those on the grid experience frequent brown outs.

   Unlike an Off-Grid System you do not have to have a large battery bank, usually enough storage to supply your critical loads for a day or two is all that is normally required.

   Another advantage is this type of system can have additional solar modules added at a later date so you can increase your output over a period of time.

   This system is not as efficient as the other two Grid-Tie Systems mentioned above


Which ever type of system you choose, you will be rewarded for your investment in the long run.

Terry R. Wolff

P.S. There is a glossery of Solar Electric Terms on my Solar-Catalog.com website. If you are unsure about any of the terms used in Solar Energy, this would be a good resource to use. There is also a glossery for Solar Water Heating Terms.

Did you know that New Jersey and Colorado are tied for second place in states installing Grid-Tie Solar Systems with California is still holding at number one.

SOLAR ELECTRIC SYSTEMS - OFF-GRID

The following information may help you with your off-grid system design...

Off-grid systems are electric systems where you are your own electric supplier. In the past, such systems relied on the use of noisy generators to supply the electric. Today however, we are fortunate to have other options such as Solar Panels, Wind Turbines, and Micro Hydroelectric Turbines. This means that you can have a good source of electrical energy even if there is no utility to get it from. So now you can produce electric with the help of our planets natural resources. All three of these methods are producers of DC electric and therefore require solar storage batteries to store the electric you produce. Even though Micro Hydroelectric runs 24 hours a day, you will still have to have batteries plus a load diversion in your design. All of these energy generators are relying on energy sources whose energy output varies. For example the Sun Rays hitting your Solar Panels will increase and decrease because of clouds and the time of day, Wind speeds are also variable causing the electric output to vary as well. So the batteries not only store the electric but also provide a more consistent supply.

Should you wire your electrical system for AC, DC or Both?

To design your system output you need to decide which type of voltage you will use, ie. AC, DC, or a combination of both. Most off grid homes, and some RV's and boats use a combination of both.

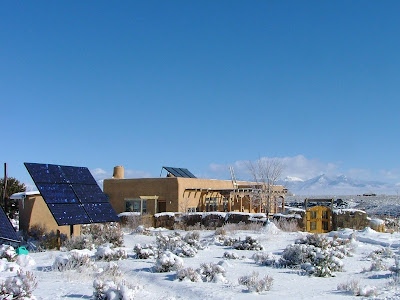

I will use our Off-Grid Solar Ranch as an example of a working off-grid independent system.

We have a 15 acre parcel of land in northern New Mexico, which contains our home, office and studio, and our motor home (a converted bus that resembles a boat from inside).

Our motor home and house both use AC and DC, while the woodcarving studio runs strictly on 120 volts AC. The house operates primarily on 120 volts AC with the exception of our hot water Circulating Pump and Booster Pump (12VDC) that provides us with water from our cistern. These two pumps run from a separate self contained system which is made up of our 12vdc panels and batteries which I gave a second life to when I up-graded our solar system from 12vdc to 48vdc. Our well (which is 480 feet deep) uses a 48 Volt DC Lorantz ETA Pump and runs directly off our 48 Volt battery bank. And this Blog and my websites are all generated on computers that are powered by sun and wind power which is stored in Solar Storage Batteries. This stored energy is than transformed into 120vac by an inverter. We started with a 12 Volt input system but once we installed our well, we had to convert to a 48 Volt system. So from my example, you can see how a system can evolve over the decades. I hope this may help you in figuring out your own system.

What about PV System Voltage Input?

Before I go any further on your system's output, I need to mention a little something about your Systems DC input voltage. Today there are three main voltages you can choose from, 12, 24, and 48vdc. 12vdc had been the standard in the US for years before solar became popular. The main reason for 12vdc is that is what vehicles and boats used. As solar use in homes increased the manufactures started looking into more efficient options thus the creation of 24 and48vdc systems. Early on PV Panels were only available in 12vdc but this has now changed.

So which one of these input voltages should you choose?

• The 48vdc systems are the most efficient and also using smaller connection wires. However, you need to take into consideration that you will need to purchase four times as many batteries as a 12vdc system. With this system you can take advantage of the larger wattage of the 24vdc PV Panels. So if you can afford the extra cost of the batteries I would recommend the 48vdc system. Also you might take this into consideration, if there is a possibility that some day in the future you may have access to selling your extra energy to the grid, with the 48vdc system you can just swap out your Off-Grid Inverter for a Grid-Interactive Inverter.


• The 24vdc systems are the most common as it uses half the number of batteries as that of the 48vdc system and half the wire size of a 12vdc system. With the 24vdc system you can also use the larger 24vdc PV Panels as with the 48vdc systems.


• The 12vdc systems are being used less these days mainly because of the limitation in 12vdc PV Panel wattage output (basically from 5 to 140 watts per panel while the 24vdc panels put out 160 to over 200 watts). Also your wiring sizes on these systems is much larger and should be taken into consideration. If your system is going to be strictly DC, a system in say an RV or boat I would recommend the 12vdc system

Back to your systems voltage output

If you have a small system or if cost is a consideration, then you might consider a DC only. DC is simpler and is a less expensive way to go because you will not require having an inverter. I see DC systems used a lot in remote cabins, on small boats, and in under developed countries. However, if you plan to run appliances that you already own (Stereo, TV, Power Tools, Toaster, etc.) you will need an Inverter (an inverter is an electronic piece of equipment which turns DC electric power into AC electric power). Since AC products are more readily available and generally less expensive you may want to run AC. Remember, that if you go 100% AC, you are relying on an inverter. If the inverter goes down there goes your electric. The good news is that today's inverters are very sturdy and long lasting. At the Solar Ranch we run redundant inverters with a backup generator just to be on the safe side. In the near 30 years that I have been living with solar I have only had two minor problems, one was a relay on my original Trace square wave inverter and the other was a faulty temperature sensor.

Wiring your home for both AC and DC is another option. By doing this, you can run both AC appliances, some DC appliance and lights. When you are running your wires to your outlets use 12 gauge wire and if you think you may want to have some DC outlets, run a set of wires for each outlet you want. You can run 10 or 12 gauge wire for your lighting. Run all your AC outlet wires to your main AC Load Center, all your DC outlets to a DC Load Center, and all your lighting wires to a third Load Center. By doing this, you can use either AC or DC lighting depending on which of the other two Load Centers you connect to. This also allows you to change your mind at a later date.

Terry R. Wolff

WHAT IS SOLAR (ELECTRIC) ENERGY?

Solar energy is the energy that can be collected from our Sun. It is the ultimate renewable energy and as long as we have the Sun we have energy. Unlike the electric energy plants, it is clean, plentiful and easy to harvest. Every day enough solar energy strikes earth to meet the world's energy needs for at least four years. As we come to see just what sort of a mess we have created during this era of industrialization. Things such as global warming and CO2 buildup are of critical concern and solar energy along with wind energy can become an incredibly valuable solution for helping us to protect our planet.

Solar energy systems are often classified into two categories, passive and active...

• A passive solar system uses the light and heat from the sun directly for both heating, cooling and lighting. The best potential for passive solar approaches are if you're building a new home and can design your home from the beginning to leverage the power of the sun. However, even existing homes can be retrofitted to better leverage passive heating and cooling.

• Active solar systems are those that involve the active use of technology to harvest the energy of the sun. This includes the use of both photovoltaic panels to capture the sun (PV) as well as home solar hot water systems. There have been extraordinary strides in solar panels in the last 10 years. Solar cells have become more efficient and less costly to produce which makes them an even greater value than they were a few years ago. There have also been great strides in our ability to install and implement PV technology as contractors and builders have begun to treat PV as a mainstream building technology. Originally solar energy was used by those who did not have access to electric from a utility company. Today solar electric is being used around the world in both the mainstream (Grid-Tie Applications) and in remote areas of the world such as Africa, Asia and the Americas. With today's solar technology these remote areas can replace their gas generators with quite and clean Solar Energy Systems.


The economics of solar energy are compelling, particularly as the costs of conventional oil and gas continue to climb. Most PV systems are warranted for at least 25 years and usually pay for themselves in much less time, even assuming that gas and oil costs don't rise.

Because of federal legislation, every state is required to allow homeowners to feed electricity into the electric grid. With grid-tied solar energy systems the meter on sunny days can actually run backwards which means the energy companies have to pay you rather than the other way around. Now isn't that a nice change! Moreover, grid-tied solar electric systems avoid the need for batteries to store the electricity making the overall system even more cost effective.

Thanks to the 2005 Energy Policy Act homeowners get a 30% tax credit for money they invest in home Solar Energy Systems.

In addition, nearly every state has begun to get on the solar bandwagon. Many states now offer additional financial incentives for home solar systems.

With the combination of federal and state financial incentives, and the improved efficiency of modern solar technology, solar energy has become an extremely sensible option for nearly every homeowner.

So more than any other time, now is one of the best times to look into how you can incorporate Solar Energy into your plans and also what you can do with your existing house to make it more passive solar friendly.

For more information about solar and solar energy products, please visit my website at Solar-Catalog.com. Yea, yea, I know I am promoting my solar business but it is part of the deal about getting this kind of information.

I would like to thank everyone who feels that they may have contributed to the making of this article. In closing I want to add this following solar thought from John Schaeffer...

It is possible to fit 1,858,560 solar modules in a square mile.
An area of solar panels 102 miles to a side would be sufficient to generate
4,000,000,000,000 kWh of electricity or enough to power the entire US.

--Source The Solar Living Source Book by John Schaeffer

Thank you for your interest in Solar Energy!!!

Terry R. Wolff

ELECTRIC 101

Many of you may have just enough exposure to electricity to maybe confuse you or to even frighten you. With this in mind, I am hoping the below information may be of some value to you who may have questions about what electricity is. I will make electrical comparisons to that of water to help you have a better understanding since most of you are familiar with water. I will not attempt to be technical. Keep in mind, that this is just an brief overview and for a better understanding of electricity you will need to acquire and read additional resources.

---------------------------

You may find the following helpful in converting the value of these terms into another value...

AMPS = Watts / Volts
VOLTS = Watts / Amps
WATTS = Amps x Volts
Kw = 1,000 Watts

---------------------------

ELECTRICITY is an electromotive force (voltage) and the flow of electrons (current) through a conductor (wire). Think of electric as water flowing through a pipe. The pressure of the water would be represented by voltage and the rate of its flow would be its current (amps). So for example, a flow of 12 pounds per square inch of water at the rate of 4 gallons per minute is similar to 12 volts (pressure) as 4 amperes (current). To increase the flow of water you need to increase the size of the pipe, with electricity you would increase the wire size, which decreasing the wire resistance allowing an increase of current. This flow is called AMPERAGE in electric or you apply more pressure to the water, in electric this pressure is called VOLTAGE.

There are two types of electricity: ALTERNATING CURRENT (AC) which you will find in your home and DIRECT CURRENT (DC) which you would find in say your flashlight or automobile. In AC the flow of electrons first flows in one direction and then they reverse and flow in the other direction. While DC the flow of electrons is in one direction from minus (-) to plus (+).

Here are the major parts which make up electricity...

Voltage (E)

Measured in VOLTS, indicates the electrical "pressure" in a system. So if you were to take the pressure at the base of two water tanks of the same diameter, one being 120 gallons and the second being 240 gallons, you would see that the larger of these two tanks has more pressure. This is the same with 120 volts compared with 240 volts. The symbol for volts is V.

Current (I)

Measured in AMPERES (AMPS), is the quantity of electricity (electrons) that is flowing in a circuit. One amp is equal to the movement of one coulomb per second or 6,280,000,000,000,000,000 electrons per second. Again using water as our example, a pipe 4 inches in diameter will supply a larger amount of water than a pipe 1 inch in diameter. This is important to remember as the size of the wires used in an electrical system will determine how much electric current can go a distance from point A to point B.

The symbol for amps is A and the amount of amps used in an hour is amp hours (AH).

Resistance (R)

Measured in OHMS, is the resistance to the flow of electricity. It is a property of all electrical devices and is present in all of our wiring. The word impedance is often used instead of resistance. Impedance is a complex form of AC resistance that can can change with frequency. For a DC system and for this short lesson we will only be using resistance. The symbol for ohms is Ω.

Power (W)

Measured in WATTS, indicates the rate at which electrical energy is being used. The symbol for watts is W.

Energy

Measured in (for our purposes) WATT HOURS (Whr) or KILOWATT HOURS (kWh). This is the amount of electric used in the time period of one hour. For example a 25 watt light bulb in service for one hour uses 25 watt hours of electrical energy. If that same bulb was left on for 100 hours your total energy usage would be 2500 Whr or 2.5 kWh. Don't confuse energy with power. Power is the rate at which energy is being used.

---------------------------

Ohm's Law

This is the relationship between VOLTS, AMPS, and OHMS. This law can be explained by the chart below.

Don't let this chart scare you, it is really quite simple to work with. It graphically shows us the relationship between VOLTS, AMPERES, OHMS, and WATTS. This chart is a powerful tool because you can refer to it to change value from watts to amperes as you size your PV power systems. You can also use it to determine the size wire is needed to minimize resistance.

Current (I) is equal to E/R or A=V/Ω

Current (I) is equal to W/E or A=W/V

Current (I) is equal to √of W/R or A=√W/Ω

Ohms (Ω) is equal to E/I or Ω=V/A
Ohms (Ω) is equal to E/W or Ω=V/W
Ohms (Ω) is equal to W/I or Ω=W/A

Voltage (E) is equal to IR or V=AxΩ
Voltage (E) is equal to W/I or V=W/A
Voltage (E) is equal to √WR or V=√WxΩ

Power (W) is equal to EI or W=VxA
Power (W) is equal to IR or W=AxΩ
Power (W) is equal to E/R or W=V/Ω
---------------------------
Like I said, this is just the basics, for more detailed information you will need to do an Internet search.

Terry R. Wolff
